Editor’s Pick JT (GAS) KING Front Double Throw Down 2.5 inch KING Coilover Bypass Rear LONG ARM PRO PLUS JEEP GLADIATOR

Description

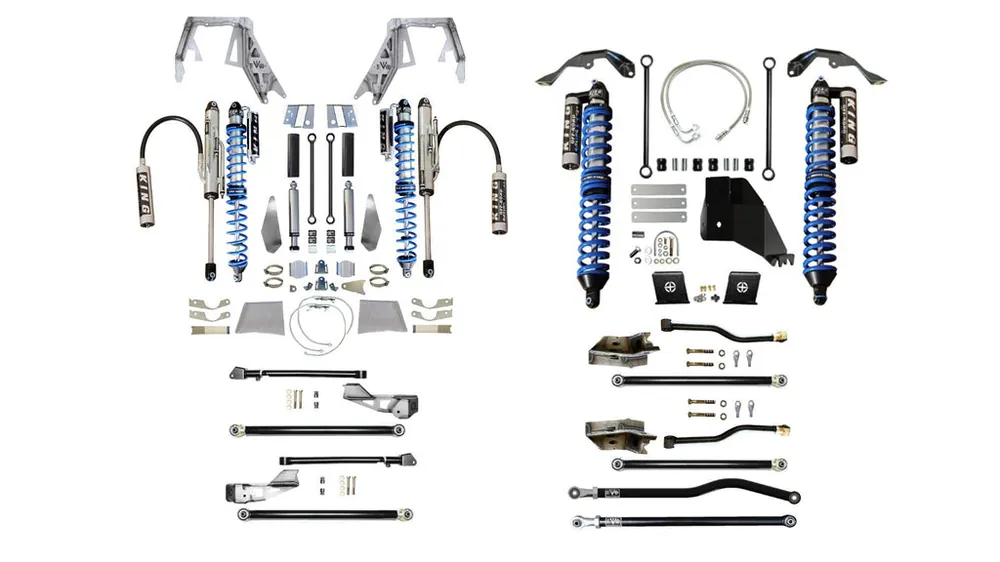

Jeep Gladiator JT Gas KING 2.5 Inch Double Throw Down Front – 2.5 Inch KING Coilover Rear Suspension System

TRIM: SPORT, OVERLAND, RUBICON, MOVJAVE

EVO SPEC KING 2.5 inch COILOVERS and BYPASS – 14 inches of Travel

KING Double Throw Down Front – KING 2.5 inch Coilover Rear Suspension System

The front EVO Double ThrowDown System is engineered for the guys who like to go fast. This system utilizes a coilover similar to our EVO SPEC Front Bolt on Coilover system and has the same added benefits, as well as an additional bypass shock. With the addition of a bypass shock you have full external adjustability of the damping and “zones” within the shock stroke that allow the system to be position sensitive. This system gives your suspension up to 14″ of vertical wheel travel specifically tuned for the Jeep JT.

Coilover/Bypass shocks (Comes complete with EVO SPEC King Shocks)

Adjustable ride height without the need for changing parts

All shocks purchased with our kit come with EVO Spec Proprietary Spring Rates and Valving.

Features:

The EVO MFG JT Gladiator DTD Pro Coilover Suspension System is a high-performance front and rear coilover suspension system specifically prepared for a balance of on and off road comfort and wheel travel when you want to go fast.

All bracketry is precision laser cut from 3/16” steel and CNC press brake formed for optimum precision and installer fitment.

EVO MFG JT Gladiator DTD Pro Suspension System comes with replacement heavy duty control arms and front/rear trackbars that offer adjustability and strength over the factory parts.

The proprietary shock package built by King Shock Technologies is specifically tailored, tuned and tested for the Jeep Gladiator, giving the vehicle a performance feel on the road, making this suspension kit compatible for a daily driver and weekend wheeler.

Offroad, the EVO MFG DTD Pro Suspension System provides the ability to wheel comfortably on advanced terrain while keeping the controlled and performance-oriented ride EVO MFG is known for.

The EVO MFG DTD Pro Kit offers adjustable ride height without the need for changing, adding or removing any parts, allowing for a varying lift height of roughly 3 inches to 5 inches. Accessory HD spring kits available for increased lift heights or heavily outfitted rigs. No exhaust or driveshaft modification needed.

EVO MFG Jeep Gladiator Long Arm Upgrade

The EVO MFG Gladiator Long Arm upgrade kit through specifically designed bracketry allows for ultimate suspension performance and chassis clearance, larger wheel travel ability, optimal suspension geometry with increased ride quality.

Clearance, ride quality, performance and ease of installation was our focus in creating this long arm suspension system. The front arms mount tucked up inside nearly flush with the bottom of the frame mounting inches above the stock front lower mounting bracket. The rear mounting locations for the long arm are on the side of the frame, half above the bottom giving ideal clearance and geometry.

Keeping optimal geometry while maintaining as much clearance was critical in the design of this system. This allows for good ground clearance but just as importantly retaining flat and optimal control arm angles giving ideal ground clearance, smooth ride quality and long travel ability.

The mounting brackets are specifically designed to require no exhaust cutting on 3.6L and Diesel Jeep Gladiators and have full length hard-face mounting surfaces that weld to your frame giving redundant and ample welding area and strength to their mounting. The mounting brackets align to the frame simply using existing factory holes giving complete assurance of proper locating during install. Simply bolt brackets up to frame with existing hardware and weld them in place. Quick install. No significant multiple holes in frame to be drilled.

EVO MFG Long Arm joints feature Johnny Joints on both ends of the control arms for restriction free articulation and motion with no wearable and limited bond rubber. All EVO MFG lower long arms are built with strength in mind.

These arms are made from industry leading 2.0” x .281” wall Steel DOM Tubing.
Cutting and grinding of frame brackets required. Welding required.

4 Link Front and Rear Suspension System

LONG ARM LOWER CONTROL ARM OPTIONS:

EVO Manufacturing offers the option of DOM steel tube lower control arms or the upgrade of billet aluminum ENVY Link lower control arms with replaceable steel skid plates. ENVY Links have the option of being raw aluminum or gold anodized.

*DOM STEEL TUBE LOWER CONTROL ARMS

2.0 x .25 WALL DOM STEEL TUBE LINKS POWDER COATED BLACK

*ALUMINUM ENVY LINKS:

BILLET ALUMINUM WITH REPLACEABLE STEEL SKID PLATES

OPTIONAL RAW ALUMINUM OR GOLD ANODIZING
